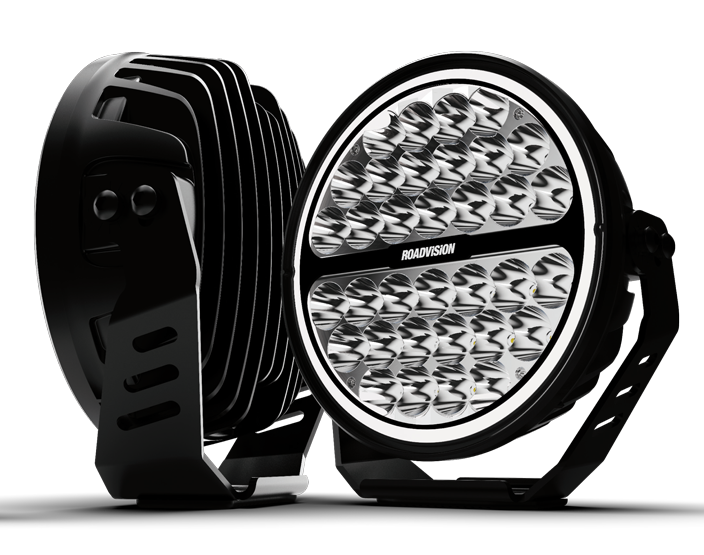

ROADVISION STEALTH HALO SERIES RDL6900S 9" DRIVING LIGHT (SINGLE)
Roadvision’s Stealth Halo Series Driving Lights deliver a sleek modern appearance for your vehicle. Available in 7″ and 9″, the Stealth Halo Series feature black mounting hardware, innovative HALO DRL, stylish modern bezel-less design and 3W Osram LEDs. The Stealth Halo Series punches out up to an impressive 10485lm per light and 912m of beam penetration @ 1 lux by utilising Roadvision’s Thermal Management Technology. Built to withstand the harshest conditions, the Stealth Halo Series feature a tough yet lightweight aluminium housing and polycarbonate lens providing superior performance and durability.
RANGE FEATURES
- Stealth Halo Series 7″ and 9” Driving Light with Halo DRL
- Blackout mounting hardware
- 3W Osram LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal Management Technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC
- Radio interference approved
SPECIFICATIONS
- Description - 9” LED Driving Light 10-30V Round 143W Spot Beam
- Beam Pattern - Spot
- Maximum Lumens per Light (pair) - 10,485lm (20,970lm)
- Maximum Lux @ 10m per Light (pair) - 8,311lx (16,622lx)

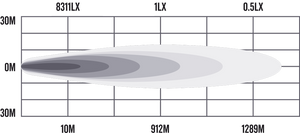

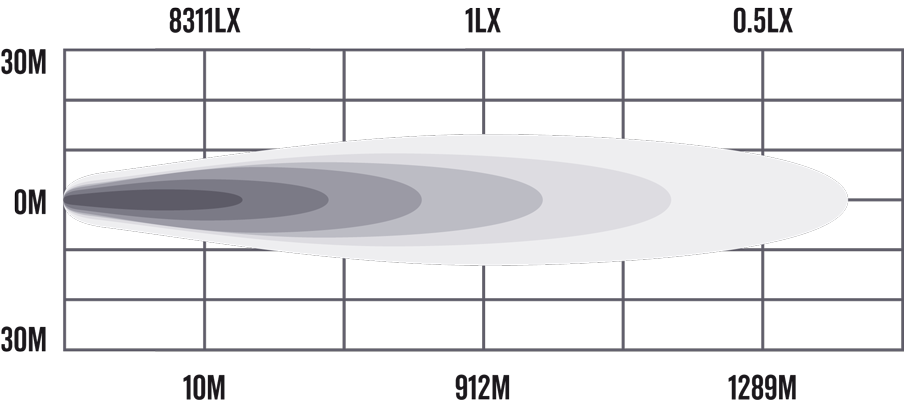

- Maximum Beam Distance @ 0.5lx per Light (pair) - 1,289m (1,823m)
- Maximum Beam Distance @ 1lx per Light (pair) - 912m (1,289m)
- Input Voltage - 10-30VDC
- Maximum Watts - 143W
- Number of LEDS - 34 x 3W Osram
- Current Draw @ 13.8V - 5.56~10.34 Amps
- Lens Construction - Polycarbonate
- Housing Construction - Die-Cast Aluminium
- Wiring - 2 Pin Deutsch Plug

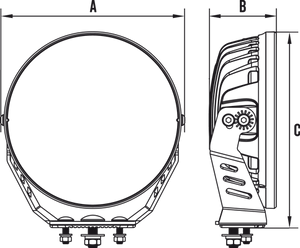

- Dimensions AxBxC - 238 x 87 x 249mm
