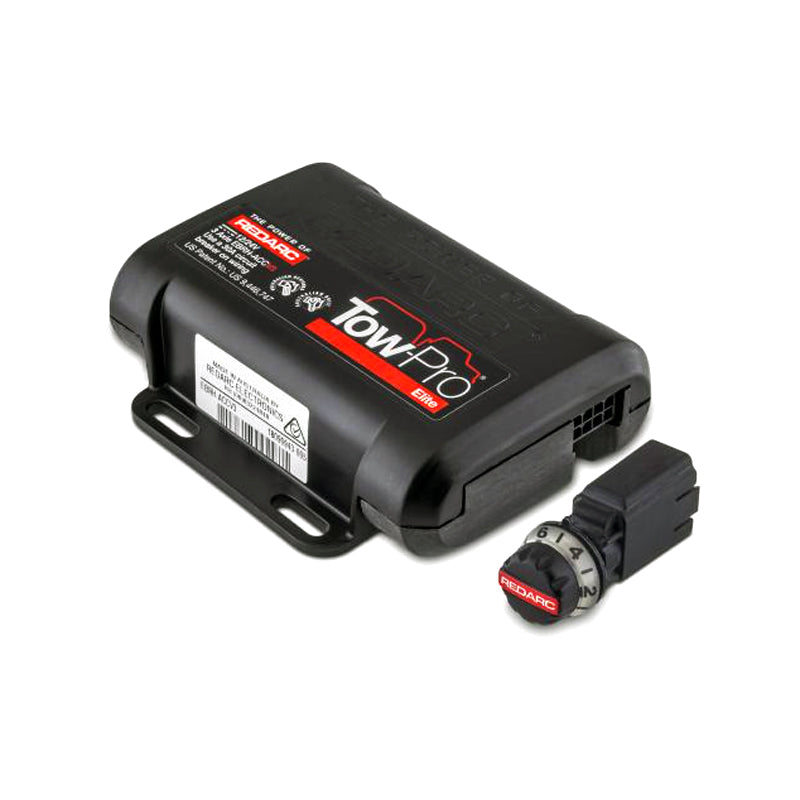

REDARC TOW-PRO ELITE V3 ELECTRIC BRAKE CONTROLLER (EBRH-ACCV3)
REDARC has released the next generation of its award-winning Tow-Pro Elite electronic brake controller.
This is the 3rd generation of REDARC’s Tow-Pro brake controller with the original released in June 2014 and the acclaimed Tow-Pro Elite released in September 2015.
This next-generation Tow-Pro Elite retains the same name as its predecessor and continues to set the benchmark in trailer brake control technology which has seen it become Australia’s favourite and most trusted brake controller.
Like previous generations, the new Tow-Pro Elite provides users with the ability to swap between Proportional mode (inertia sensing) for highway driving conditions and User-Controlled mode for off-road driving.
Even smoother braking capabilities
Software upgrades have been included in the next generation Tow-Pro Elite which will result in smoother braking for motorists towing heavy trailers and caravans.
Compatible with all modern vehicles
The next-generation Tow-Pro Elite ensures compatibility with all new vehicle technology and also still features Active Calibration, works with Electric and Electric/Hydraulic trailer brakes, supports 12 or 24 volt vehicle systems and ensures an ADR approved installation. It has also been approved by AL-KO for use with their ESC and DSC systems.
New-look control knob
The main enhancements to the upgraded Tow-Pro Elite relate to the size and installation of the user interface (remote head). A change to the shape, length, size and depth of the remote head will allow a quicker and easier installation of the Tow-Pro Elite. It also ensures the remote head will fit into thicker and curved dashes found in European vehicles and trucks.
Specifications
| Input (Operating) Voltage | 9 - 32VDC |
| Input Fuse Rating | 30A (Circuit Breaker) |
| Standby Current Draw | <10mA |
| Output System Voltage | 12VDC |
| Output Current Rating (Cont.) | 25A |
| Length (mm) | 85 |
| Width (mm) | 100 |
| Height (mm) | 30 |
| Weight (kg) | 0.2 |
| Warranty | 2 Years |
Wiring kits can be purchased seperatley
FORD RANGER AND EVEREST (TPWKIT-012)
NISSAN NAVARA D23 NP300 (TPWKIT-008)
MITSUBISHI PAJERO (TPWKIT-013)
TOYOTA HILUX, TOYOTA FORTUNER (TPWKIT-013)
TOYOTA KLUGER, TOYOTA PRADO (TPWKIT-013)
ISUZU DMAX & MU-X (TPWKIT-013)
MITSUBISHI TRITON, PAJERO SPORT (TPWKIT-014)
200 SERIES LANDCRUISER (TPWKIT-014)
