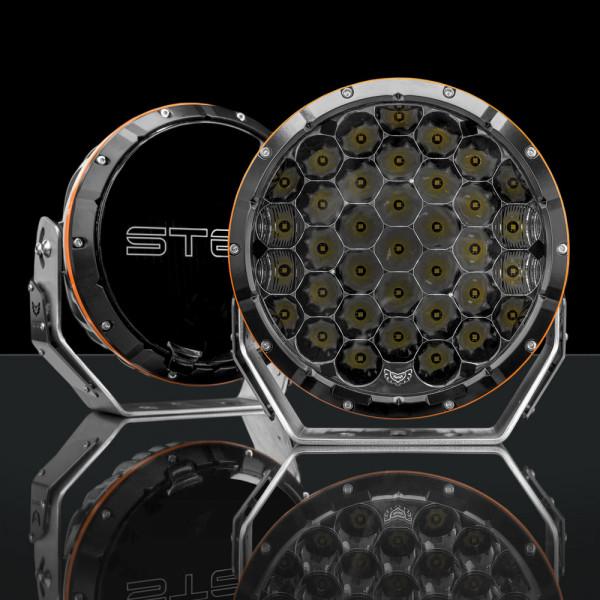

STEDI TYPE-X SPORT 8.5” LED SPOT LIGHTS (LEDTYPE-X-SRT)
DETAILS

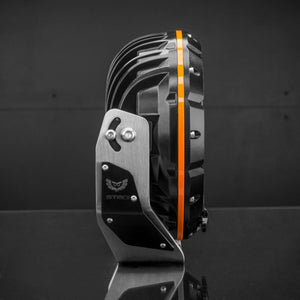

-4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
-A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
-3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
-100% Polyester UV and abrasion resistant powder coat
-IP68 | Dust & Particle tight + Water-proof up to 3 meters
-Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
-Environmentally Sealed Deutsch® DTP-2 connector
-EMI & RFI Suppression circuitry – We guarantee it.
-Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.

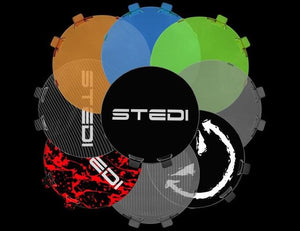

-Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
-5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
SPECIFICATIONS
|
LED |
36 x Osram Oslon SSL |
|
RAW LUMENS |
20,780 (Pair) |
|
TESTED LUMENS |
14,950 (Pair) |
|
AMP DRAW |
9.8A @ 13.2v (each) |
|
POWER DRAW |
129W |
|
CANDELA |
1,102,500cd |
|
BEAM PATTERN |
4 x Spread 32 x Spot Beam |
|
INGRESS PROTECTION |
IP68 | Submersible up to 3m |
|
COLOUR TEMP (CCT) |
5700K |
|
VOLTAGE COMPATIBILITY |
12v & 24v |
|
LUMEN MAINTENANCE |
50,000 LM-80 |
|
WEIGHT |
3.35kg (each) |
|
PHOTOMETRIC DATA |
|
|
10 M |
11,025 Lx |
|
50 M |
441 Lx |
|
200 M |
27 Lx |
|
300 M |
12 Lx |
|
400 M |
6 Lx |
|
1,000 M |
1.1 Lx |
|
1,050 M |
1 Lx |
|
|
|
WHAT’S IN THE BOX
- 2 x STEDI TYPE-X Sport

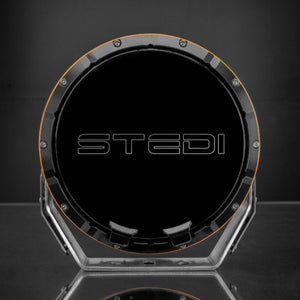

- 2 x STEDI Black Out Covers
- 1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
- 3 Series Stainless Steel Nuts and Bolts
- Rubber Shock Dampener
- Wiring Instruction
